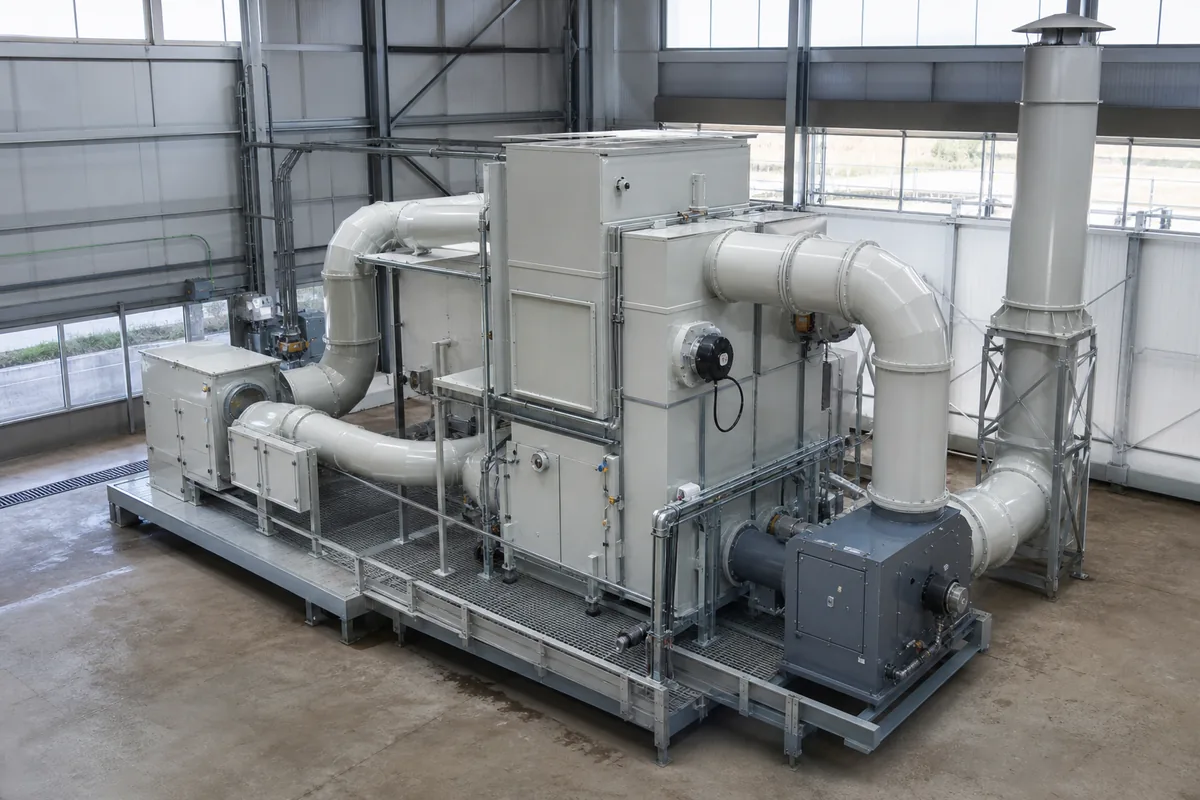

Why Operating Cost Must Be Checked Before Selecting a VOC System
For VOC control equipment, the purchase specification often starts with air volume, VOC concentration and required removal efficiency. These are necessary, but not enough. A system with a lower capital cost can have a higher lifetime cost if it uses too much steam, fuel, electricity, activated carbon or maintenance time.
For procurement and plant engineering teams, a practical voc abatement operating cost estimate should be prepared before equipment selection. The calculation does not need to be perfect at the first stage, but it should show the main cost drivers clearly.
The main operating cost items are usually:
- Fan electricity
- Heater or burner energy
- Activated carbon replacement or regeneration
- Scrubber water and chemical consumption, if a wet pretreatment stage is used
- Compressed air for valves and instruments
- Waste handling, such as spent carbon or wastewater
- Routine maintenance parts, such as filters, demisters, packing and seals
This article gives a worked example for a common case: low to medium concentration solvent VOC exhaust from a coating or printing process. The same calculation method can be used for other processes after adjusting the input data.
Example Design Basis
Assume a factory has one VOC exhaust stream from a coating line. The basic data are:
| Item | Value used in example | Notes |
|---|---|---|
| Exhaust air flow | 20,000 m³/h | Actual flow at operating condition |
| VOC concentration | 300 mg/m³ | As total VOC, average value |
| Operation time | 16 h/day, 300 days/year | 4,800 h/year |
| Required removal efficiency | 90% | Depends on local permit |
| Exhaust temperature | 35°C | No major heat recovery available |
| Moisture | Moderate | No visible mist |
| Dust/oil mist | Low | Pre-filter still recommended |
| VOC type | Mixed solvents | Adsorption possible, oxidation possible |
First calculate the VOC mass load:
`text VOC load (kg/h) = Air flow (m³/h) × VOC concentration (mg/m³) ÷ 1,000,000 `
For this case:
`text VOC load = 20,000 × 300 ÷ 1,000,000 = 6 kg/h `
Annual VOC sent to the treatment system:
`text Annual VOC = 6 kg/h × 4,800 h/year = 28,800 kg/year `
At 90% removal, the system must remove about:
`text 28,800 × 90% = 25,920 kg/year `
This is a useful number. Any proposed system must handle about 26 tonnes per year of VOC removal. The operating cost will depend strongly on how this mass is treated.
Comparing Three Common VOC Abatement Options
For this example, three practical options may be considered:
- Activated carbon adsorber with periodic carbon replacement
- Activated carbon concentrator with catalytic oxidation
- Direct thermal oxidation
The best choice depends on VOC concentration, solvent type, airflow variation, safety limits, and local utility conditions. The table below compares the typical operating cost drivers.
| System type | Suitable range | Main operating cost | Comments |
|---|---|---|---|
| Carbon adsorber, disposable carbon | Low concentration, intermittent operation, small to medium air flow | Spent carbon replacement, fan electricity, waste disposal | Simple operation, but carbon cost rises when VOC load is high |
| Carbon concentrator + catalytic oxidation | Low concentration, larger continuous air flow | Fan electricity, desorption heat, catalyst heater fuel/electricity, carbon maintenance | Often good for 100–1,000 mg/m³ VOC when operation is stable |
| Direct thermal oxidation | Medium to high VOC concentration | Fuel or electric heating, fan electricity | Can be expensive at low VOC concentration unless heat recovery is high |
For the worked example, we will estimate the first two options because they are commonly considered for 20,000 m³/h and 300 mg/m³ VOC.
Worked Option A: Activated Carbon Adsorber with Replacement
In a disposable activated carbon system, VOC is captured in carbon beds. When the carbon approaches breakthrough, it is removed and replaced or regenerated off-site.
A simple engineering estimate needs three values:
- VOC removed per year: 25,920 kg/year
- Working adsorption capacity of carbon
- Fan power
The working adsorption capacity is not the same as laboratory iodine value or maximum adsorption. For mixed solvent VOC in real exhaust, a practical working capacity is often 10–25% by weight of carbon before replacement. It depends on solvent type, inlet concentration, humidity, temperature and breakthrough limit.
For this example, use 15% working capacity.
`text Carbon consumption (kg/year) = VOC removed ÷ Working capacity Carbon consumption = 25,920 ÷ 0.15 = 172,800 kg/year `
This is a high carbon consumption. It shows why disposable carbon is often not economical for continuous medium-load VOC streams.
Fan power can be estimated from:
`text Fan power (kW) = Air flow (m³/s) × Total pressure (Pa) ÷ Fan efficiency ÷ 1,000 `
Convert air flow:
`text 20,000 m³/h ÷ 3,600 = 5.56 m³/s `
Assume total pressure drop including ducting, filters, carbon beds and stack is 1,800 Pa. Assume fan efficiency is 60%.
`text Fan power = 5.56 × 1,800 ÷ 0.60 ÷ 1,000 = 16.7 kW `
Annual electricity:
`text 16.7 × 4,800 = 80,160 kWh/year `
So for Option A, the annual operating inputs are approximately:
- Activated carbon: 173 tonnes/year
- Fan electricity: 80,000 kWh/year
- Filter replacement and maintenance: depends on dust/oil mist load
- Waste handling: depends on local rules for spent carbon
To convert this into money, multiply each quantity by your local unit rate:
`text Annual cost = kWh × electricity tariff
- carbon kg × delivered carbon unit cost
- spent carbon kg × waste handling unit cost
- maintenance consumables
`
No universal unit price should be used because electricity, carbon quality, transport distance and waste classification vary greatly by country and site.
Worked Option B: Carbon Concentrator with Catalytic Oxidation
A carbon concentrator system uses adsorption to capture VOC from the large air volume, then desorbs the VOC into a smaller hot air stream. The concentrated stream is treated by catalytic oxidation. This reduces the amount of gas that must be heated.
Assume the following typical design values:
- Main process air flow: 20,000 m³/h
- Concentration ratio: 10:1
- Desorption air flow: 2,000 m³/h
- VOC removed: 25,920 kg/year
- Catalyst inlet temperature: 250–350°C, depending on catalyst and VOC
- Desorption/heating temperature: application dependent, often 100–140°C for carbon systems
- Total fan pressure for main air path: 2,000 Pa
- Fan efficiency: 60%
Main fan power:
`text Air flow = 20,000 ÷ 3,600 = 5.56 m³/s Fan power = 5.56 × 2,000 ÷ 0.60 ÷ 1,000 = 18.5 kW Annual electricity = 18.5 × 4,800 = 88,800 kWh/year `
There will also be a smaller desorption fan. Assume 2,000 m³/h, 2,500 Pa, 55% efficiency:
`text Air flow = 2,000 ÷ 3,600 = 0.56 m³/s Fan power = 0.56 × 2,500 ÷ 0.55 ÷ 1,000 = 2.5 kW Annual electricity = 2.5 × 4,800 = 12,000 kWh/year `
Total fan electricity is therefore about:
`text 88,800 + 12,000 = 100,800 kWh/year `
Heating energy is more complex because it depends on heat recovery, VOC calorific value, operating temperature and insulation. A simple sensible heat estimate is:
`text Heat duty (kW) = Air flow (m³/s) × Air density (kg/m³) × Cp (kJ/kg·K) × ΔT (K) `
For desorption/catalyst heating, use:
- Desorption air flow: 2,000 m³/h = 0.56 m³/s
- Air density: 1.2 kg/m³
- Cp: 1.0 kJ/kg·K
- Temperature rise: from 35°C to 300°C, so 265 K
`text Heat duty = 0.56 × 1.2 × 1.0 × 265 = 178 kW `
Annual heat input before heat recovery:
`text 178 × 4,800 = 854,400 kWh thermal/year `
If heat recovery and VOC heat release reduce external heating by 50%, the external heat demand becomes:
`text 854,400 × 50% = 427,200 kWh thermal/year `
This value must be multiplied by the local fuel or electric heating unit cost and adjusted for heater efficiency. For a gas burner with 85% efficiency:
`text Fuel energy input = 427,200 ÷ 0.85 = 502,600 kWh fuel/year `
For Option B, the annual operating inputs are approximately:
- Fan electricity: 101,000 kWh/year
- External heating energy: about 503,000 kWh fuel/year in this assumption
- Activated carbon or adsorbent maintenance: much lower than disposable carbon, but not zero
- Catalyst inspection or replacement: interval depends on poisoning risk, temperature history and VOC composition
- Pre-filter replacement: important to protect the adsorbent and catalyst
The important result is that Option B changes the main cost from carbon replacement to energy consumption.
What the Example Tells Us
For this 20,000 m³/h, 300 mg/m³ case, disposable activated carbon has simple equipment but very high carbon use. At 15% working capacity, the plant may consume more than 170 tonnes/year of activated carbon. If the factory operates continuously and waste handling is strict, this is often not attractive.
The concentrator with catalytic oxidation uses more complex equipment and needs heat energy, but it avoids frequent bulk carbon replacement. It is often more suitable when:
- Air flow is high
- VOC concentration is low to medium
- Operation is regular, for example more than 3,000 h/year
- VOC is suitable for adsorption and catalytic oxidation
- Dust, resin mist, acid gas or catalyst poisons can be controlled before the VOC unit
However, there are cases where simple carbon adsorption is still reasonable:
- Low operating hours, such as pilot lines or batch processes
- Very low VOC mass load
- Temporary emission control
- Sites where fuel is not available
- VOC streams that are not suitable for oxidation without special design
A good rule of thumb: calculate annual VOC mass first. If removed VOC is only a few hundred kilograms per year, disposable carbon may be practical. If removed VOC is several tonnes per year or more, check regeneration, concentration or oxidation options carefully.
Also remember safety. VOC concentration must be checked against the lower explosive limit. Many systems are designed to operate below 25% LEL in normal conditions, but the exact design basis depends on local safety requirements, instruments and process risk analysis.
Practical Next Step
Before requesting quotations, prepare a one-page data sheet with air flow, VOC concentration range, VOC components, temperature, humidity, dust/oil mist condition, working hours and required removal efficiency. Ask each supplier to provide annual estimates for electricity, fuel, carbon or adsorbent consumption, catalyst maintenance and waste handling quantities. This makes the voc abatement operating cost comparison much clearer than comparing equipment size alone.
